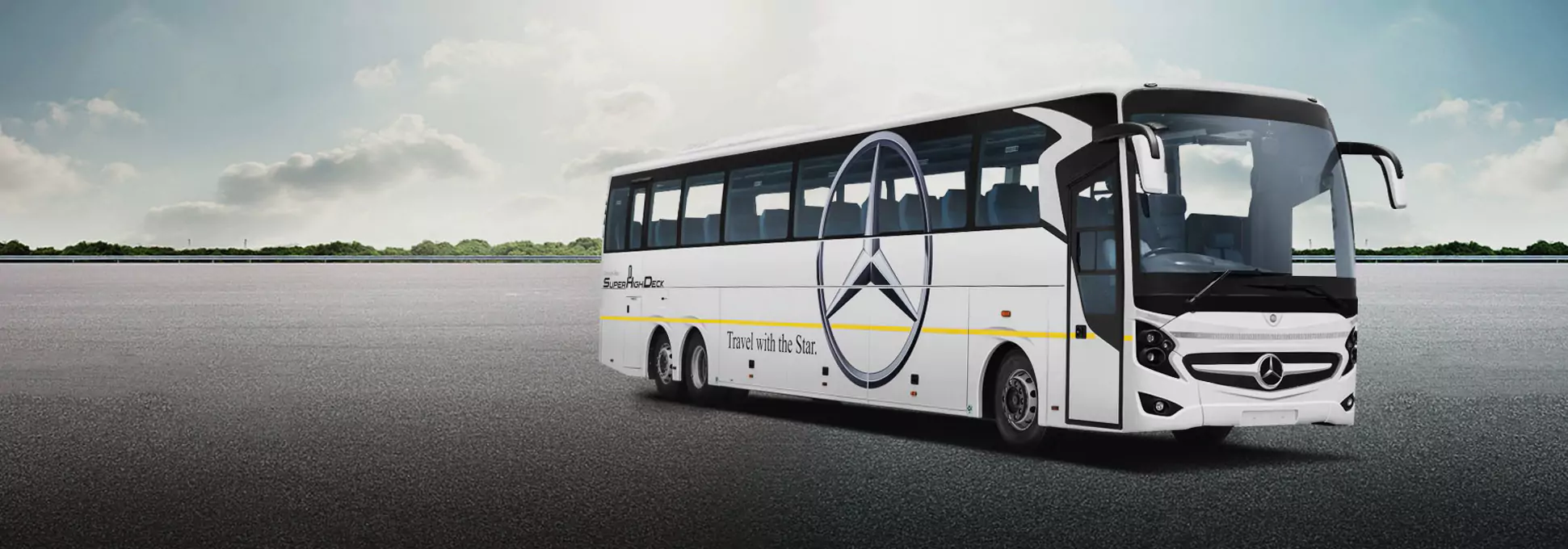

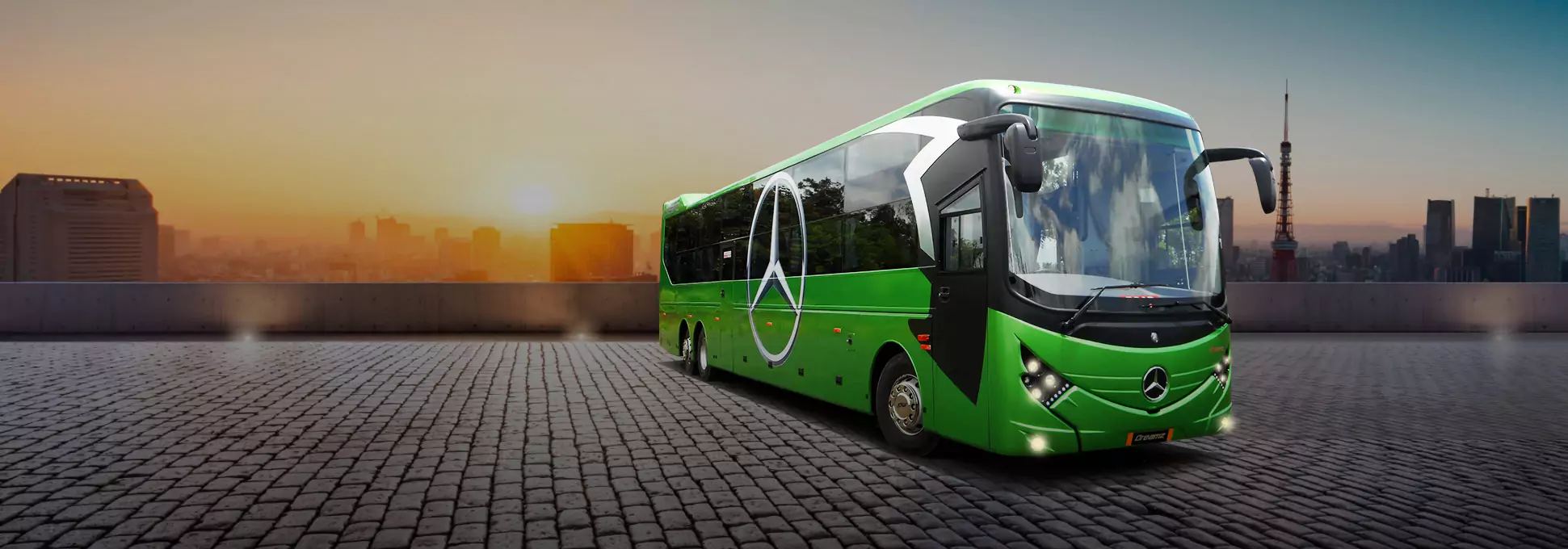

Mercedes Benz Buses
Now, passengers may enjoy a variety of luxurious amenities while cruising in tranquility thanks to meticulous design and top-notch German engineering. Greetings from an opulent excursion.
Mercedes Benz Features
High Ride Comfort
Modern and cutting edge The SHD 2441 can travel over rough Indian roads with ease thanks to Mercedes-Benz air suspension, which doesn't even alert passengers. The air bellows placed closer to the side walls and the banana beam structure allow it to absorb and reduce the effects of uneven roads. This suspension unit was inherited from Brazil and, prior to set up in a vehicle, underwent extensive testing on Indian terrain and was adjusted appropriately.
Comfortable ride with all new automatic transmission
Along with electronically-controlled gear shifting mechanism, the 6-speed automatic transmission with overdrive ensures smooth and hassle-free rides to passengers. The technology used is optimized to high service-life, low maintenance and fuel-savings.
World class engine to save your pocket
The heart of the drive train is the in-line six cylinder OM457 engine with 12 litre displacement and power rating efficiently tuned at 408 HP (300 KW). The engine with SCR diesel technology is environment friendly and economical. ZF Ecolife AT clubbed with OM457 Engine not only ensures best in class fuel efficiency but also low NVH thereby adding to passenger comfort. Longer Maintenance cycles ensure minimum visits to the workshop.
Maximum Stability with ESP
The Mercedes-Benz coach is equipped with revolutionary safety measures with an Electronic Braking System (EBS) including disc brakes with Anti-lock Braking System (ABS) and Anti-Slip Regulation (ASR). The Electronic Stability Control detects and reduces loss of traction. All these lead to a more confident control and emphasized vehicle stability for quicker cornering and easier avoidance maneuvers.
Details
Specifications
» Model: OM457
» Type : 6 cylinder, vertical in-line, water-cooled
» Emission standard : BS IV / EuroV
» Maximum power : 408 hp (300 kW) @ 2000 rpm
» Maximum Torque: 1900 Nm @ 1100 rpm
» Model: ZF Ecolife 6 AP 2000B
» No. of gears: 6 forward and 1 reverse
» Mode of operation: Automatic
» Service brake: Dual circuit full air brakes with disc, exhaust and engine brakes
» Parking brake: Spring loaded rear brake chambers with air release
» Front brake disc diameter: 430 mm
» Rear brake disc diameter: 430 mm
» Retarder: Intarder (ZF Ecolife) fitted to gearbox
» Front & Rear axle: Electronic Controlled Air Suspension (ECAS)
» Shock Absorber: Double acting telescopic
» Stabilizer bar: Yes
» Type: Power steering
» Steering Column: Telescopic & Adjustable
» Driveline front axle: VO 4/40 DCL-7.1; “I” beam
» Driveline rear axle: HO6/6 DCL(S)-13
» Driveline tag axle: ZF RL 75EC - Active Steerable, disc brakes
» Electrical System: IES-CAN
» System output: 24 V
» Battery: 2x12V, 200Ah
» Alternator: 28V / 140A
» Starter output: 6.7 kW
» Instrument Cluster: Instrument cluster with on-board diagnostics
» ABS/ESP: Electronic Stability Programme
» Fuel Tank Capacity: 3 X 200Ltrs
» Ad-Blue Tank: 49.5 Ltrs
» Tyres: 295/80 R 22.5
» Structure: Mild Steel under structure with aluminium alloy extrusion subframe
» Exterior panels: Aluminium alloy sheets bolted with chemical locking
» Flooring: Flat floor with marine grade plywood and anti-skid vinyl
» Door: In-swing pneumatic door
» Windows: Toughened, all-breakable with green tint
» Emergency Exits: Door, roof-hatches, windows
» Seats: 51 (with calf support)
» Driver Seat: 3-way air suspended with 3-point seat belt
» Luggage Compartment: ~14 cu.m. with Al chequered flooring (and spare wheel)
» AC: Belt driven compressor, roof-mounted AC unit, Eberspacher (37/42 kW)
» Service sets: With adjustable AC vent console, reading lights, speakers and service call, emergency stop, lights and speaker switches
» Entertainment System: DVD player with three units of 22" foldable LCD monitors
» Paint: Solid/Metallic
